Description

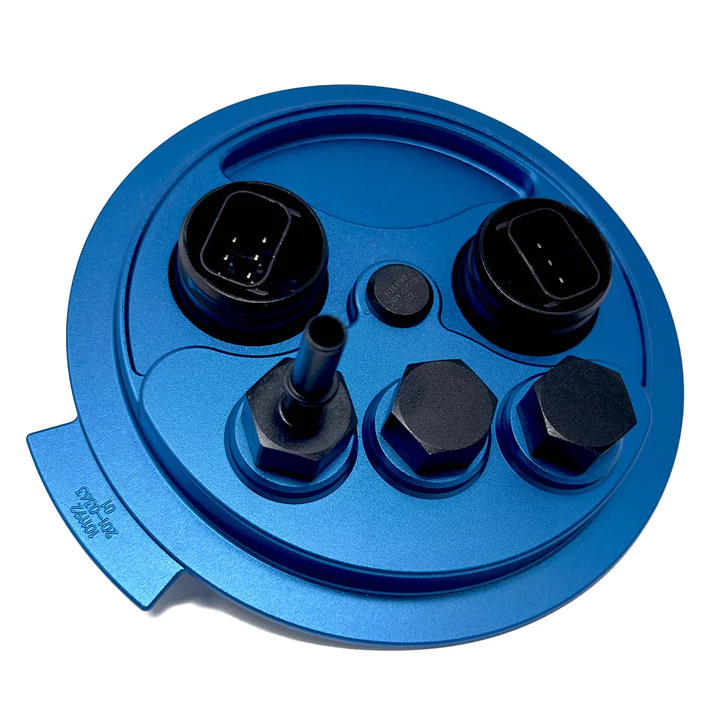

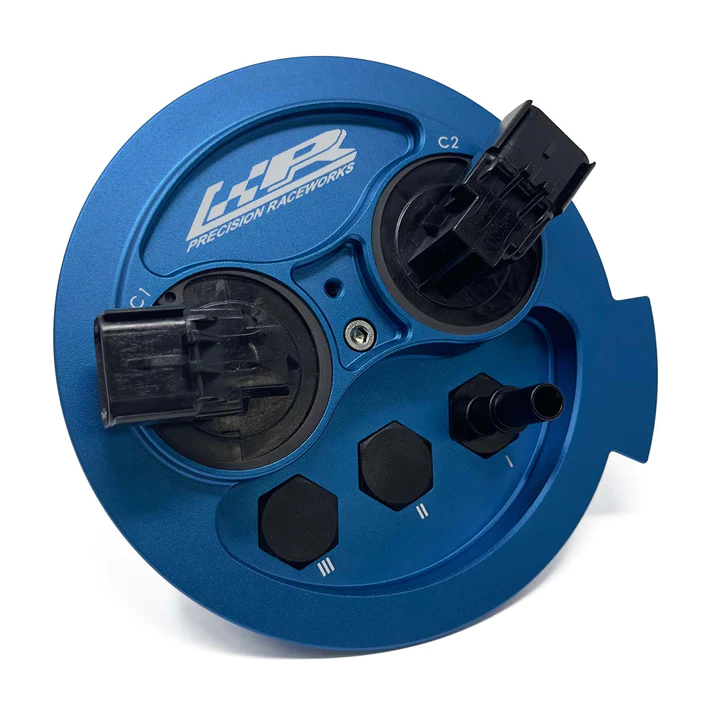

The Precision Raceworks BMW G-Series and A9x Toyota Supra Billet Tophat is a great way to get the most out of any fuel system! With up to 3 dedicated high flow modular ports and up to 12 wires, there are countless ways you can configure your pump setup to meet your needs!
Features & Benefits
- Billet Aluminum top hat with 3 high flow fuel ports (optional – 1 included)
- Ability to run dedicated fuel pump(s) for port injection system
- Compatible with adjustable 1:1 scaling fuel pressure regulator
- Fully sealed quick connect style high current electrical connectors
- All billet fuel fittings when using AN8 or Quick Connect Options
- Increased injector flow (when using 1:1 regulator feature vs static)
- Compatible with all stock or upgraded primary fuel pumps*
- Modular design allows for AN8 or quick connect connection styles
- All components compatible with Gasoline, Methanol, & Ethanol
- Compatible with sensor on tophat (Not all vehicles have this sensor)
*Note when connecting to some performance fuel pumps, additional PTFE lines and fittings may be required. Contact us if you need assistance purchasing these items.

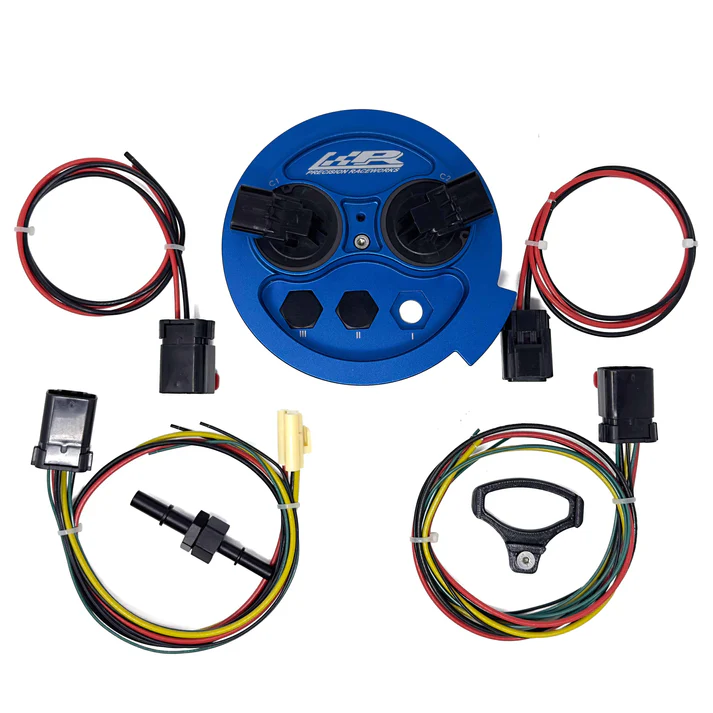

Main Items Included
- Billet Tophat
- Two Electrical bulkheads with connectors (6 wires ea)
- Two electrical connectors pre-wired to run factory pump and floats
- Two electrical connectors pre-wired for single 2-wire pump (additional wires and terminals sold separately)
- One 3/8″ male quick connect output (compatible with factory line)
- One 7.89mm male quick connect for in the tank
- One PTFE line for in tank with 7.89 quick connect (for factory filter)
- Two accessory port block off plates
- One sensor mounting bracket (not needed on all cars)
Optional Accessories
- Proprietary full flow low profile AN8 Bulkhead set
- Loose electrical terminals compatible with our connectors
- Pre-crimped pigtail electrical wires compatible with all fuels
- 90 degree billet quick connects for AN6 Fuel line
- Smooth bore PTFE Fuel line by the inch
- All fuel compatible electrical wire by the inch
Product Weight: 2.0 lbs
Material: Anodized Aluminum
OEM Pump Wiring: Included – Requires posi-taps or T-Taps
Secondary Pump Wiring: Included for 1 additional pump
Included Pump Output: 9.49mm (3/8″) male quick connect (fits oem fuel line)
